punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine

  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
  • punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine
Lugar de origen Porcelana
Nombre de la marca DIXUN
Certificación CE & ISO 9001:2015
Número de modelo DX-63T
Cantidad de orden mínima un juego
Detalles de empaquetado Los repuestos y el gabinete de control se cargarán en una caja de madera. La máquina principal es el
Tiempo de entrega 30 días laborables
Capacidad de la fuente 5 juegos por mes
Datos del producto
Solicitud hacer alambre de púas Nombre del producto Máquina automática para fabricar alambre navaja de venta de fábrica
Tipo de navaja TCC BTO Motor de punzonadora 5,5 KW
Peso de carga del desenrollador 2 toneladas máquina del sacador 11 tiras de afeitar
motor de desbobinador 1,5 kw Espesor de la placa bobina galvanizada 0,4 mm o 0,5 mm
Ancho de la placa de bobina galvanizada 154 mm Peso Total 8 t
Resaltar

63T punch pressure razor wire machine

,

BTO-22 razor wire making machine

,

11 strips barbed wire machine
Deja un mensaje
Descripción de producto

Punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine





Introduction of Razor Wire Making Machine



Razor barbed wire machine mainly consists of punching machine and coil machine.

Punching machine cuts steel tapes in different razor shapes with different moulds.

Coil machine is used to wrap razor strip up onto the steel wire and wind up the finished products into rolls.



Features of Razor Wire Making Machine



1. Automatic de-coiler holding max. 2tons steel sheet; its motor made of copper leads.

2. We adopts Chinese No. 1 Press machine, and step motor to feed steel sheet fast and smooth.

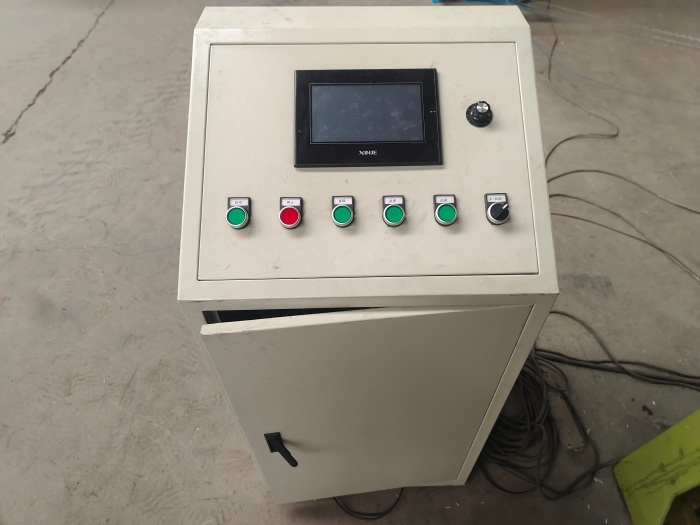

3. Control box with Text screen and PLC control and Delta inverter easily.

4. Punch machine was equipped with Foot/button switch control separately for easy operation.

5. Customized hardened alloy mold ensures little wastage of raw materials; hot-cast mold, one-year life.

6. Lubricant oil device is visible and central process, maintain machine easily, extend machine life.

7. Strong machine body made of cast steel with complex metal working.

8. Razor coiling machine adopts Grid counter to record loops quantity automatically.

9. Razor coiling machine adopts inverter to adjust working speed, more precise, long life.

10. Roller diameter for finished wire can be adjustable widely.

Razor Wire Machine Advantages

1. Automatically complete production line, operator friendly and higher speed.
2. Automatical decoiler holding max. 2tons steel sheet; its motor made of copper leads.
3. Different ton punch press for choice to save your cost.
4. Customized mold saving 20% raw materials.
4. Slitting frame and recoiler to wind up razor tapes rolls tightly.
5. Electro-magnetic motor in coiling machine for smooth speed adjustable.
6. Multifunctional squeezing wheels for strong finished razor wire.

Technical Parameters of Razor Wire Making Machine



Name Motor Rotate speed Control mode Dimension
Punch machine 5.5kw 75-130 r/min frequency  conversion 1800*1600*2550mm
Decoiler  1.5kw 80 r/min automatic 1000*900*1000mm
Collect razor strip machine 3.0kw 0-100 r/min frequency conversion 1000*900*1000mm
Feeding machine 1.5kw   frequency conversion 700*300*300
Coiling machine 3.0kw 0-260 r/min frequency conversion 1000*550*1000mm



Applications of Razor Wire Making Machine



Razor barbed wire is extensively used for security isolation, communication stations, power distribution stations, border prisons, landfill, community protection, schools, factories, farms, etc.

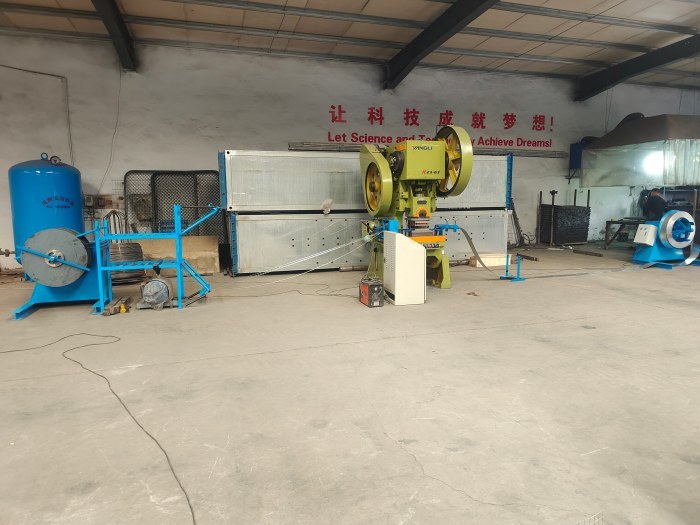

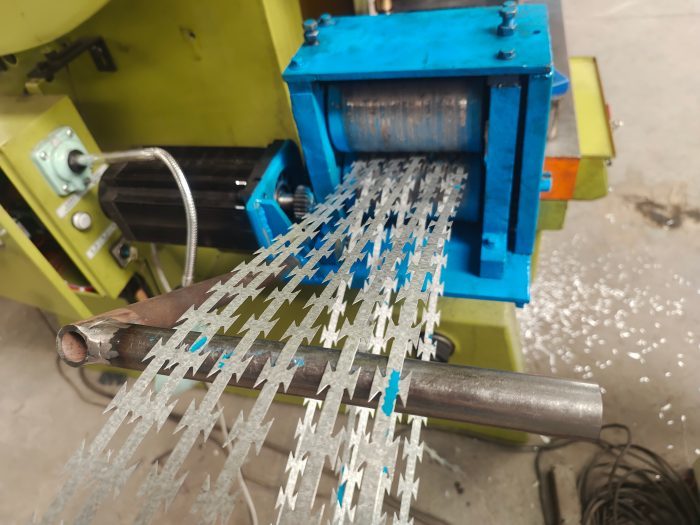

Photos of Razor Wire Making Machine



punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 0

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 1

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 2

punch Pressure 63T BTO-22 11 Strips Razor Wire Making Machine 3
